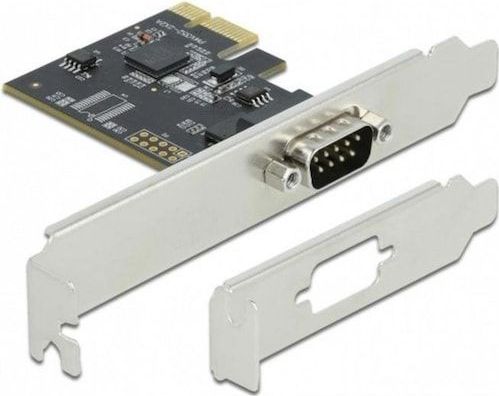

DeLOCK - 90000 - PCI Express-kaart - Zwart - 1 x Seriële RS-232 DB9, Data-overdrachtssnelheid tot 230,4 kbps

The Delock PCI Express card expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: Exar XR17V352
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Dimensions (LxW): ca. 64 x 45 mm

• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot

Package content

• PCI Express card
• Low profile bracket
• Driver CD
• User manual
