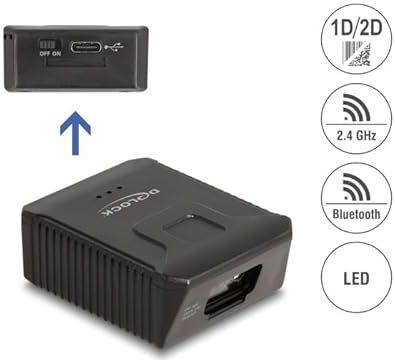

Delock - Draagbare Barcode Scanner - Zwart - 1D en 2D - Bluetooth en 2.4 GHz

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 100 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.


This portable scanner can be conveniently attached to the glove via a snap-on mechanism, leaving the wearer's hands free to hold a box, for example.

Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Note
The scanner can also be used without a glove.
Not suitable for Swiss QR Codes.

• Connector: 1 x USB Type-C™ female
• Decoding chip: ARM Cortex 32 Bit
• Rechargeable battery: Li-Polymer battery 380 mAh
• Resolution: 1280 x 800
• Trigger: scan button
• Reading distance: ca. 30 mm to 300 mm
• Reading accuracy: 4 mil
• Operation time: ca. 8H with 2D, 12H with 1D
• Range:
indoor area: up to 10 m
outdoor area: up to 10 m
• Charging time: ca. 2 hours
• Internal memory: 16 MB
• LED indicator for charging, Bluetooth connection and power
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 100 scans per second
• Angle of pitch: 360°
• Surrounding brightness: max. 10000 Lux
• Input voltage: 3.3 V
• Current consumption:
operation: max. 100 mA
standby: max. 30 mA
• Operating temperature: -10 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 90 % (non condensing)
• Colour: black
• Weight: ca. 40 g
• Dimensions (LxWxH): ca. 56 x 42 x 20 mm
• Cable length without connectors: ca. 1 m
• Bluetooth standard V 4.1
• 2.4 GHz
• Scancodes:
Codabar
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro PDF417
Micro QR
PDF417
QR Code
• Supported languages:
German
English
French
Italian
Spanish
Swiss German
Swiss French
Hungarian

• Android 11.0 or above
• Chrome OS
• iPad Pro (3rd Generation) or above
• iPad Air (4th Generation) or above
• Mac OS 12.4 or above
• Bluetooth standard 4.1 or above
• PC or laptop with a free USB Type-A port for dongle
• Windows 10/10-64/11

Package content

• Barcode scanner
• USB 2.4 GHz dongle
• USB charging cable
• User manual
