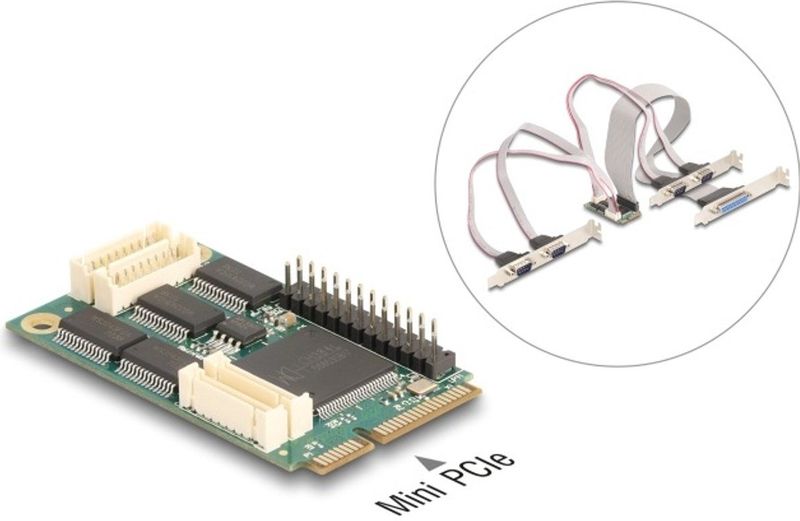

Delock - Mini PCIe I/O Controlekaart - 4 x Seriële RS-232 - 1 x Parallelle D-Sub

The Mini PCIe module by Delock expands your system by four serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

• Connectors:
external:
4 x serial D-Sub 9 pin male
1 x parallel D-Sub 25 pin female
internal:
1 x Mini PCI Express, Rev. 1.2
4 x 10 pin pin header
1 x 26 pin pin header
• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 4 x 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Parallel specification:
• Data transfer rate up to 1 Mbps
• SPP, PS2, EPP, ECP compatible to IEEE 1284
• Cable length incl. connectors: ca. 25 cm
• Dimensions (LxWxH): ca. 51 x 30 x 10 mm

• Windows 10/10-64/11
• Windows Server 2022
• Motherboard with a free Mini PCIe slot with a PCIe interface

Package content

• Mini PCIe module
• 4 serial connecting cable
• 1 parallel connecting cable
• 3 x standard bracket
• 5 x low profile bracket
• User manual
