Delock - PCI-Ex16-controller - NVMe ondersteuning - Storage controller

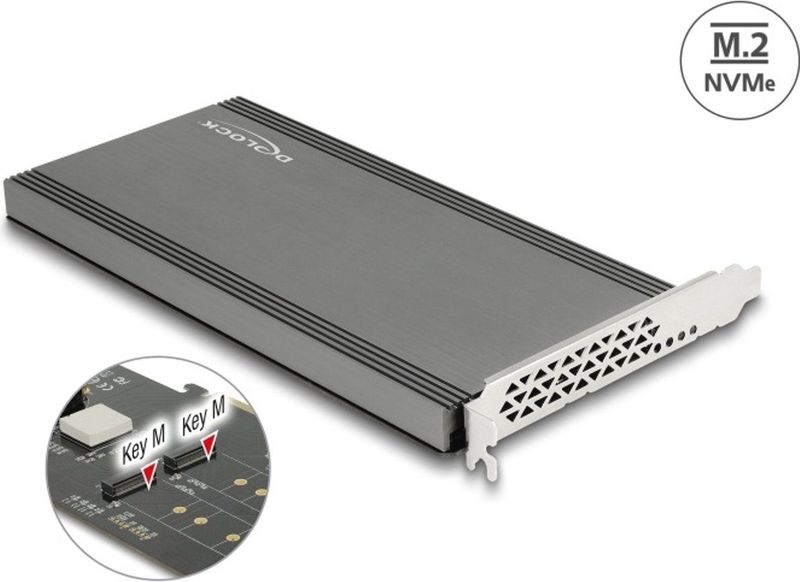

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink and the fan onboard, sufficient cooling of the M.2 modules is guaranteed.

• Connectors:
internal:
2 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Chipset: Asmedia ASM2824
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable (one slot - CN1)
• 1 x 40 mm fan for active cooling of the M.2 modules
• 1 x heat sink
• 2 x LED indicator
• Dimensions heat sink (LxWxH): ca. 202 x 95 x 8 mm

• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x16 / x32 slot

Package content

• PCI Express card with fan
• Heat sink
• M.2 mounting material
• Screwdriver
• 3 x thermal pad
• User manual
