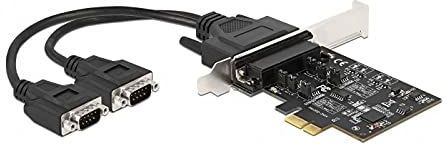

Delock - PCI Express Card - 2 x Serial RS-422/485 - Met 15 kV ESD Bescherming

The PCI Express card by Delock expands a PC by two external serial RS-422/485 ports. Devices such as scanners, protocol converters, POS systems, infrared -, IoT - devices etc. and different modes can be used.
The PCIe card supports 2- and 4-wire operation at both connections for RS-422 and RS-485 devices. In addition, the integrated terminating resistors can optionally be activated, thus avoiding unwanted signal interference.

RS-422 or RS-485 settings
The settings can be set with jumpers on the PCIe card and provide the modes Auto Detect, RS-422 and RS-485 4-wire full duplex and RS-485 2-wire half duplex operation.

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

• Connectors:
external: 1 x DB44 female
connecting cable: DB44 male > 2 x serial RS-422/485 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: MaxLinear XR17V352, SP3078E
• Data transfer rate up to 1 Mbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: XON / XOFF, RTS / DTR, CTS / DSR
• RS-485 automatic half duplex data flow control
• Protection for open, short-circuited or terminated input lines
• Status LEDs: TX, RX
• ±15 kV ESD protection on all signal pins (HBM)
• ±15 kV IEC 61000-4-2 Air Gap Discharge
• ±8 kV IEC 61000-4-2 Contact Discharge
• I/O address and IRQ assigned by BIOS
• Optional termination resistor 120 ohms

• Linux Kernel 2.6 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot

Package content

• PCI Express card
• 1 serial connecting cable
• Low profile bracket
• 4 x jumper
• Driver CD
• User manual
