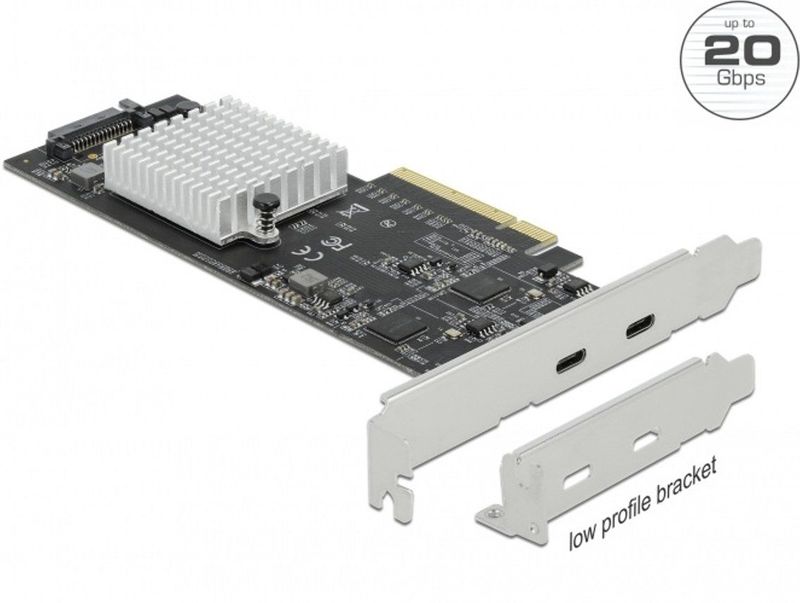

Delock - PCI Express Kaart - Low Profile - 2x USB-C - USB 3.2 Gen2x2 - Controlekaart

This PCI Express card by Delock expands the PC by two external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

SuperSpeed USB 20 Gbps
The card allows a data transfer rate of 20 Gbps on the USB-C™ port.

• Connectors:
external:
2 x SuperSpeed USB 20 Gbps (USB 3.2 Gen 2x2) USB Type-C™ female
internal:
1 x PCI Express x8, V2.0
1 x SATA 15 pin power connector
• Chipset: Asmedia ASM3242, ASM1824
• Data transfer rate up to:
SuperSpeed USB 20 Gbps,
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port: max. 15 watt (5 V / 3 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs

• Linux Kernel 3.12 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x8 / x16 / x32 slot

Package content

• PCI Express card SuperSpeed USB 20 Gbps
• Low profile bracket
• User manual
