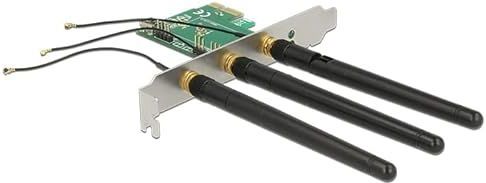

Delock - PCI Express Kaart - M.2 Key A Interface - USB en PCIe

This PCI Express card by Delock expands the PC by one M.2 key A slot. Different M.2 modules with USB and PCIe signals can be inserted in the card. On the M.2 key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth. The USB modules need to be connected via the USB interface of the card to the system. If required, the antenna and antenna cables can be changed e.g. if the inserted module has other RF connectors.

• Connectors:
1 x 67 pin M.2 key A slot
1 x PCI Express x1
1 x USB 2.0 Type Mini-B female (for M.2 USB modules)
1 x USB 2.0 pin header male (for M.2 USB modules)
3 x I-PEX Inc., MHF-I plug (antenna cable)
• Interface: PCIe + USB
• Suitable for M.2 modules in format: 3042, 3030, 2242 and 2230 with key A
or key A+E based on PCIe and USB
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Antenna
Gain: 2 dBi
Frequency range: 2.4 GHz and 5 GHz
Impedance: 50 Ohm
VSWR: 2.0
Polarisation: linear
• 2 x jumper for activating / deactivating the USB / PCIe signals
• 2 x LED indicator
• Each slot bracket with 3 x hole for antenna connector
• OS independent, no driver installation necessary

• PC with one free PCI Express slot

Package content

• PCI Express card
• Low profile bracket
• 3 x antenna (RP-SMA plug)
• 1 x USB cable USB Type-A male to Mini-B male, length ca. 1 m
• User manual
