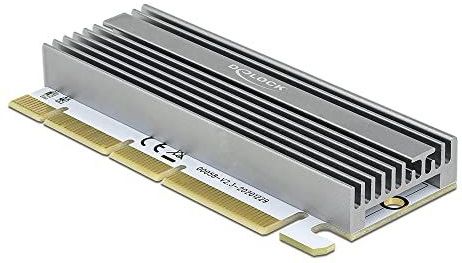

Delock - PCI Express Kaart naar NVMe M.2 - LED Verlichting - Koeling

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. The card can be operated through the notches on an x4, x8 or x16 slot. If the card will be installed in the PC, the slot bracket does not have to be removed.

Heat sink and LED illumination
With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed. The PCIe card has 7 LEDs to illuminate the computer’s interior. The RGB LEDs automatically change their color in a colour gradient and use the complete colour spectrum.

• Connectors:
1 x M.2 key M slot
1 x PCI Express x16 (4-Lane), V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• 1 x LED indicator for power and activity
• 7 x RGB LED for automatically colour gradient
• Dimensions (LxWxH) without heat sink: ca. 98 x 44 x 5 mm

• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card
• M.2 mounting material
• Heat sink
• Thermal conductive pad
• Screwdriver
• User manual
