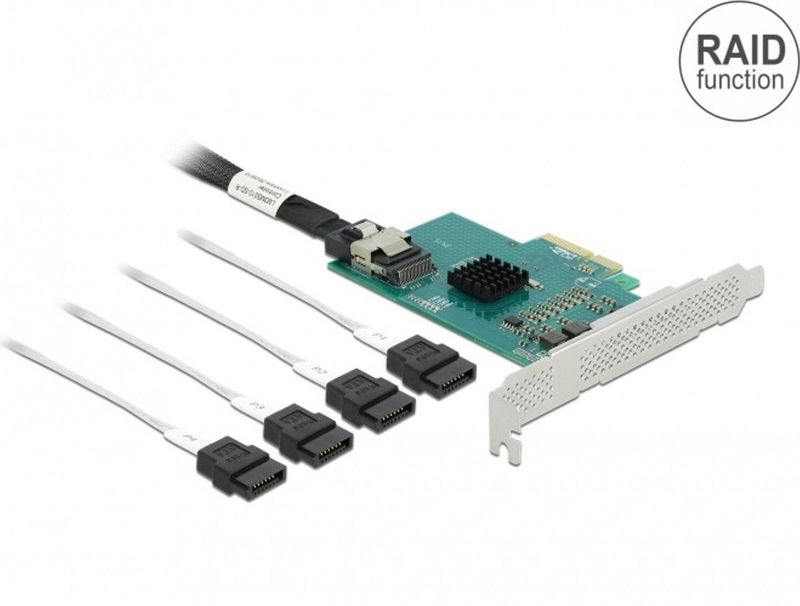

Delock - PCI Express Kaart - Zwart - 4 x SATA 6 Gb/s - Ondersteunt RAID 0, 1, 10 en HyperDuo

The PCI Express card by Delock expands a PC by four internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

RAID and HyperDuo function
The card supports a HyperDuo function. With this function an SSD and an HDD will be combined to use the advantages of both data mediums. The speed of a SSD and the capacity of a HDD. The card also supports the common RAID 0, RAID 1 and RAID 10.

• Connectors:
1 x SFF-8087 female
1 x PCI Express x4, V2.0
• Chipset: Marvell 88SE9230
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, RAID 1, RAID 10, JBOD, Port Multiplier, HyperDuo
• Supports HDD and SSD
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Supports Serial ATA AHCI
• Bootable
• 4 x LED indicator
• Humidity: 0 ~ 90 %
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -10 °C ~ 65 °C

• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card
• Low profile bracket
• Cable SFF-8087 male to 4 x SATA receptacle, length ca. 80 cm
• User manual
