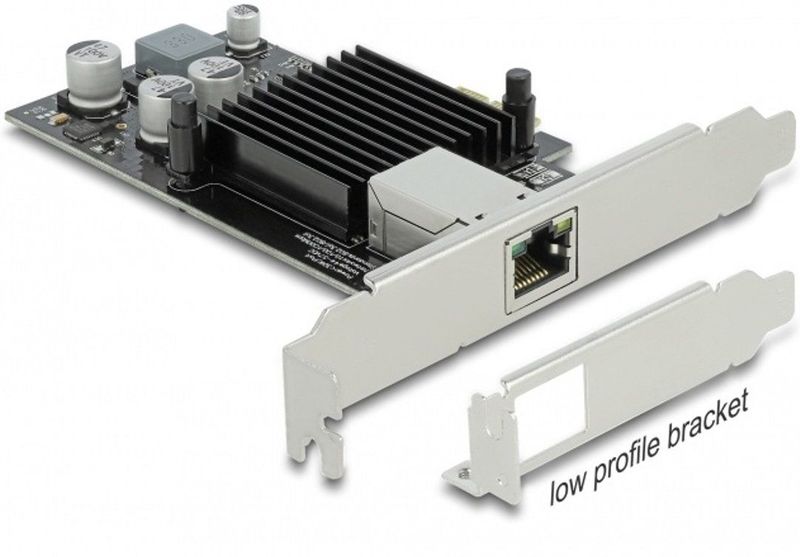

Delock - PCI Express X1 - Netwerkkaart - RJ45 - Gigabit - Intel I210

The PCI Express card by Delock offers one network port with a data transfer rate up to 1000 Mbps.

PoE support
The RJ45 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

• Connectors:
external:
1 x Gigabit LAN RJ45 jack
internal:
1 x PCI Express x1, V2.1
• Chipset: Intel i210
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
PCI Express x1 up to 2.5 Gbps
• Suitable for Gigabit Ethernet vision systems
• Supports IEEE 1588 PTP
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 9k Jumbo Frames
• Supports PXE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Output power: max. 30 W total
• LED indicator for link and activity

• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot

Package content

• PCI Express card
• Low profile bracket
• Driver CD
• User manual
