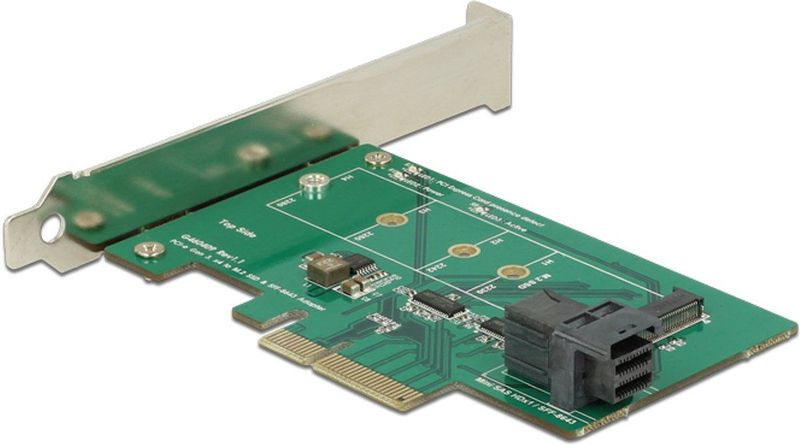

Delock - PCI Express x4 - Controleur - Laag Profiel - Ondersteunt M.2-modules 2280, 2260, 2242, 2230

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. Furthermore e.g. one SSD with U.2 interface can be connected by using an optional cable. Only one interface can be used, if both are occupied only the M.2 slot can be used.

• Connector:
internal:
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
1 x 36 pin SFF-8643 female
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based
on PCIe
• Maximum height of the components on the module: 1.35 mm application of double-sided
assembled modules supported
• Bootable, from UEFI version 2.3.1 (M.2 slot)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• LED indicator
• Power supply via PCI Express
• Supports NVM Express (NVMe)

• Windows 7/7-64/8.1/8.1-64/10/10-64/11, Linux Kernel 3.2
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card
• Low profile bracket
• 3 x fixing screw
• User manual
