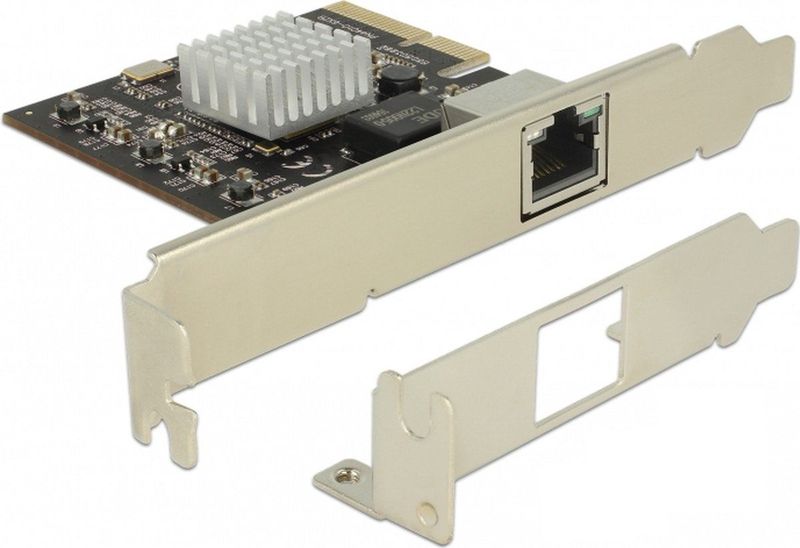

Delock - TN4010 - PCI Express Kaart - 10 Gigabit LAN - Ondersteunt 9K Jumbo Frames, VLAN en Link Aggregation

This PCI Express card by Delock offers a network port with a data transfer rate up to 10 Gbps over conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows higher transmission rates than 1 Gbps, when a 10 Gbps connection is not possible with the existing cable.

• Connectors:
external: 1 x 10 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x4, V2.0
• Chipset: Tehuti TN4010
• Data transfer rate:
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
PCI Express x4 up to 16 Gbps
• Supports 9k Jumbo Frames
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3ad Link Aggregation

• Windows Server-2008 R2/Server-2012/
Server-2012 R2/7/7-64/8.1/8.1-64/10/10-64,
Linux ex Kernel 2.6.24
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content

• PCI Express card
• Low profile bracket
• Driver CD
• User manual
