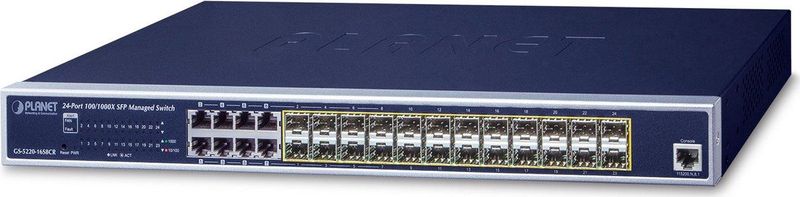

Planet - GS-5220-16S8CR - Netwerkschakelaar - Zwart - Beheerd - 24 Poorten

MODEL: PLANET GS-5220-16S8CR L2+ 24-Port 100/1000X SFP + 8-Port Shared TP Managed Switch + Redundant AC/DC Power MULTI FIBER ROUTING SWITCH FOR WIDE-COVERAGE POE IP SURVEILLANCE APPLICATIONS With 24 SFP fiber interfaces with 8 shared Gigabit ports and Layer 3 IP static routing capability, the GS-5220-16S8C and GS-5220-16S8CR provide a cost-effective and high-performance solution for enterprises, network service providers, campuses and telecoms. LAYER 2+ VLAN STATIC ROUTING With the built-in robust IPv4 / IPv6 Layer 3 traffic routing protocols, the GS-5220-16S8C and GS-5220-16S8CR ensure reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The GS-5220-16S8C and GS-5220-16S8CR are certainly a cost-effective and ideal solution for enterprises. FEATURES PHYSICAL PORT * 24 100/1000Base-X mini-GBIC/SFP slots * 8-port 10/100/1000Base-T Gigabit Ethernet RJ-45, shared with Port-1 to Port-8 * RJ45 to RS-232 DB9 console interface for basic management and setup LAYER 2 FEATURES * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) * High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth * Storm Control support * - Broadcast / Unicast / Unknown Unicast * Supports VLAN * - IEEE 802.1Q tagged VLAN * - Up to 255 VLANs groups, out of 4095 VLAN IDs * - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) * - Private VLAN Edge (PVE) * - Protocol-based VLAN * - MAC-based VLAN * - IP Subnet-based VLAN * - Voice VLAN * Supports Spanning Tree Protocol * - STP, IEEE 802.1D Spanning Tree Protocol * - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol * - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN * - BPDU Guard * Supports Link Aggregation * - 802.3ad Link Aggregation Control Protocol (LACP) * - Cisco ether-channel (Static Trunk) * - Maximum 12 trunk groups, up to 8 ports per trunk group * - Up to 16Gbps bandwidth (full duplex mode) * Provides Port Mirror (many-to-1) * Port Mirroring to monitor the incoming or outgoing traffic on a particular port * Loop protection to avoid broadcast loops LAYER 3 IP ROUTING FEATURES * Supports maximum 128 static routes and route summarization QUALITY OF SERVICE * Ingress Shaper and Egress Rate Limit per port bandwidth control * 8 priority queues on all switch ports * Traffic classification * - IEEE 802.1p CoS * - TOS / DSCP / IP Precedence of IPv4/IPv6 packets * - IP TCP/UDP port number * - Typical network application * Strict priority and Weighted Round Robin (WRR) CoS policies * Traffic-policing policies on the switch port * DSCP remarking MULTICAST * Supports IGMP Snooping v1, v2 and v3 * Supports MLD Snooping v1 and v2 * Querier mode support * IGMP Snooping port filtering * MLD Snooping port filtering * MVR (Multicast VLAN Registration) SECURITY * IEEE 802.1X Authentication with Guest VLAN * Built-in RADIUS client to cooperate with the RADIUS servers * RADIUS / TACACS+ users access authentication * IP-based Access Control List (ACL) * MAC-based Access Control List (ACL) * Source MAC / IP address binding * DHCP Snooping to filter distrusted DHCP messages * Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding * IP Source Guard prevents IP spoofing attacks * IP address access management to prevent unauthorized intruder MANAGEMENT * Switch Management Interfaces * - Console / Telnet Command Line Interface * - Web switch management * - SNMP v1, v2c, and v3 switch management * - SSH / SSL secure access * Four RMON groups (history, statistics, alarms and events) * IPv6 Address / NTP management * Built-in Trivial File Transfer Protocol (TFTP) client * BOOTP and DHCP for IP address assignment * Firmware upload / download via HTTP / TFTP * DHCP Relay and Option 82 * User Privilege levels control * NTP (Network Time Protocol) * Link Layer Discovery Protocol (LLDP) * SFP-DDM (Digital Diagnostic Monitor) * Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues for TP ports * ICMPv6 / ICMPv4 Remote Ping * Reset button for system reboot or reset to factory default * SMTP / Syslog / SNMP Trap remote alarm * System Log * PLANET Smart Discovery Utility for deploy management REDUNDANT POWER SYSTEM (GS-5220-16S8CR) * Redundant 100~240V AC / 36-60V DC dual power * Active-active redundant power failure protection * Backup of catastrophic power failure on one supply * Fault tolerance and resilience Specifications Copper Ports 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports, shared with Port-1~Port-8 SFP/mini-GBIC Slots 24 100/1000Base-X dual-speed SFP interfaces Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 48Gbps / non-blocking Throughput 35.7Mpps@64Bytes Address Table 16K entries, automatic source address learning and ageing Shared Data Buffer 16M bits Flow Control IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex Jumbo Frame 10K bytes Reset Button < 5 sec: System reboot > 5 sec: Factory default Dimensions (W x D x H) 440 x 200 x 44.5 mm, 1U height Weight 2745g LED SYSTEM: ???PWR (Green) DC (Green) ???Fault (Red) ???FAN (Red) 10/100/1000T RJ45 INTERFACES (PORT 1 TO PORT 8): ???1000Mbps LNK/ACT (Green) ???10/100Mbps LNK/ACT (Orange) 100/1000MBPS SFP INTERFACES (Port 1 to Port 24): ???1000Mbps LNK/ACT (Green) ???100Mbps LNK/ACT (Orange) Power Requirements 100~240V AC, 50/60Hz 48V DC @ 0.6A, Range: 36 ~ 60V Power Consumption 45 watts / 153 BTU (max.) ESD Protection 6KV DC Layer 2 Functions Port Configuration Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable / enable Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status Port Mirroring TX / RX / Both Many-to-1 monitor VLAN 802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs Link Aggregation IEEE 802.3ad LACP / Static Trunk 12 groups of 8-port trunk supported Spanning Tree Protocol STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol QoS Traffic classification based, Strict priority and WRR 8-Level priority for switching ?- Port Number ?- 802.1p priority ?- 802.1Q VLAN tag ?- DSCP/TOS field in IP packet IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support Access Control List IP-based ACL / MAC-based ACL Up to 256 entries Bandwidth Control Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps Layer 3 Functions IP Interfaces Max. 128 VLAN interfaces Routing Table Max. 32 routing entries Routing Protocols IPv4 hardware Static Routing IPv6 hardware Static Routing Management Basic Management Interfaces Console / Telnet / Web browser / SNMP v1, v2c Secure Management Interfaces SSH, SSL, SNMP v3 SNMP MIBs RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP Standards Conformance Regulation Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000Base-T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2 Environment Operating Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) Storage Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
