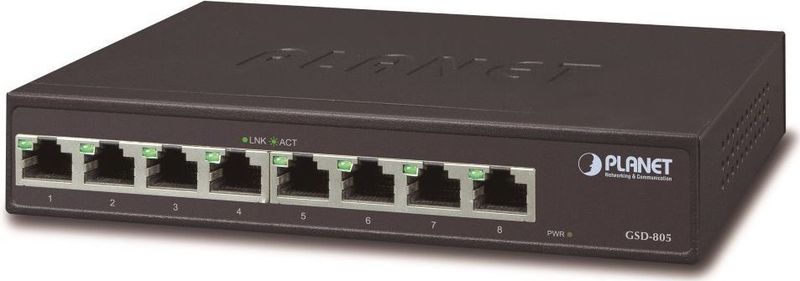

PLANET - GSD-805 - 8-Port 1000Base-T Desktop Gigabit Switch - Intern Voeding

GSD805 PLANET 8-PORT 1000BASE-T DESKTOP GIGABIT SWITCH INT. POWER 8-PORT 10/100/1000MBPS DESKTOP GIGABIT ETHERNET SWITCH (INTERNAL POWER) For small palm size and desktop installation with internal power supply source, PLANET releases the new GSD-805 wall mountable 10/100/1000Mbps Gigabit Ethernet Switch, which provides non-blocking wire-speed performance and with new metal shape for desktop deployment in compact housing or SOHO application. The GSD-805 has 4K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss. The Gigabit ports with 9K jumbo packet support and with a 16Gbps internal switching fabric can handle large amounts of data transmission in a secure topology linking to a backbone or high-power servers. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment. All of the GSD-805 RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Compliant with standard for Auto-MDI / MDI-X enables GSD-805 to detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function of GSD-805 allows routers and Servers to directly connect to this device for fast, reliable data transfer. SMALL OFFICE / SOHO / HOME BACKBONE SWITCH With 8 RJ-45 10/100/1000Mbps ports for high-speed network connectivity and up to 16 Gigabits per second, non-blocking switch fabric, the GSD-805 can easily provide a local, high bandwidth, Gigabit Ethernet network for small Office, SOHO or home backbone applications. KEY FEATURES * Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard * 8-Port 10/100/1000Mbps Gigabit Ethernet ports * Features Store-and-Forward mode with wire-speed filtering and forwarding rates * Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, llow control and auto-negotiation * IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation * Integrated address look-up engine, support 4K absolute MAC addresses * 1Mbit on-chip frame buffer * 9K Jumbo packet support * Automatic address learning and address aging * Supports Auto MDI / MDI-X function * Supports CSMA / CD protocol * Internal power adapter 100-240V AC, 50/60Hz, 0.2A * FCC, CE class A compliant SPECIFICATION MODEL GSD-805 10/100/1000Base-T Ports 8 Dimension (W x D x H) 191 x 85 x 26 mm Weight 390g Power requirement Internal power 100-240V AC, 50/60Hz, 0.2A Power Consumption / Dissipation 9.6 watts / 32 BTU Switch Processing Scheme Store-and-Forward Address Table 4K entries Share data buffer 1Mbit on-chip frame buffer Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex Switch fabric 16 Gbps Throughput (packet per second) 1,9Mpps Network cables 10/100/1000Base-T: Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.) Standards Compliance IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Full-duplex flow control Temperature Operating: 0~50 Degree C Storage: -40~70 Degree C Humidity Operating: 5~90% Storage: 5~90% (Non-condensing) Regulation Compliance FCC Part 15 Class A, CE
