PLANET - GSW1601 - Ethernet Switch - 16 Poorten - 10/100/1000Mbps

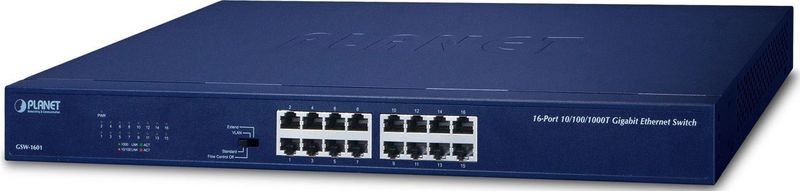

GSW1601 PLANET 16-PORT 10/100/1000MBPS GIGABIT ETHERNET SWITCH 10/100/100 Mbps Gigabit Ethernet Switch 16 Port The PLANET TGSW1601 is 10/100/1000Mbps Gigabit Ethernet switch with 16 ports respectively, and non-blocking wire-speed performance. With a 32Gbps internal switching fabric, the TGSW1601 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSW-1601 has 8K MAC Address table and provides 272KB buffer memory. The TGSW-1601offers wire-speed packets transfer performance without risk of packet loss. The high data throughput of GSW-1601 makes it ideal for most Gigabit environments, especially while network upgrades to a Gigabit environment. All RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Support is standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows your Gigabit switch supported routers and servers to directly connect to this switch for fast, reliable data transfer. * Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T * 16-Port 10/100/1000Mbps Gigabit Ethernet ports * Features Store-and-Forward mode with wire-speed filtering and forwarding rates * Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation * IEEE802.3x flow control for full duplex operation and Backpressure for half duplex operation * Integrated address look-up engine, support 8K absolute MAC addresses * Provide 272KB buffer memory * 9K Jumbo packet support * Automatic address learning and address aging * Supports Auto MDI/MDI-X function * Support CSMA/CD protocol * 100~240VAC, 3.0A, 50~60Hz universal Power input * FCC, CE class A compliant APPLICATION Backbone Switch : With up to 32 Gigabits per second of non-blocking switch fabric, theTGSW1601 can easily provide the high bandwidth required both now and future. SERVER FARM SWITCH: Providing 16 Gigabit Ethernet ports, the TGSW-1601 is ideal to use as a server farm switch connecting to your servers and powerful desktops. SPECIFICATION HARDWARE SPECIFICATION MODEL TGSW1601 NETWORK PORTS 16-Port 10/100/100Mbps RJ-45 with Auto-MDI/MDI-X SWITCH ARCHITECTURE Store and Forward SWITCH FABRIC 32Gbps SWITCH THROUGHPUT 23.8Mbps ADDRESS TABLE 8K Entries SHARE DATA BUFFER 272KB FLOW CONTROL Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex DIMENSION (W X H X D) 440 x 44 x 120 mm WEIGHT 1.6 KG POWER REQUIREMENT 100~240 VAC, 3.0A, 50-60 Hz POWER CONSUMPTION 30 watts, 102 BTU TEMPERATURE Operating: 0~50 degree C, Storage -40~70 degree C HUMIDITY OPERATING: 10% to 90%, Storage: 5% to 95% (Non-condensing) STANDARDS CONFORMANCE STANDARDS COMPLIANCE IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-duplex flow control) FCC Part 15 Class A, CE
