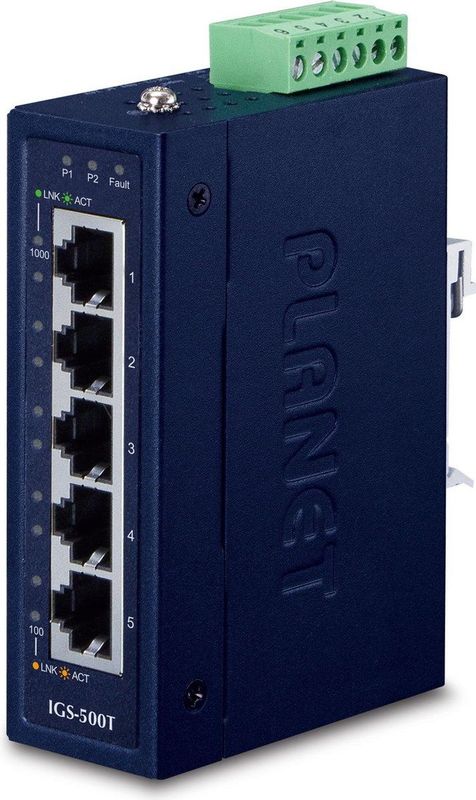

PLANET - IGS-500T - Ethernet Switch - 5-Port - Compact - Industrial

MODEL: PLANET IGS-500T Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch DESIGNED FOR HEAVY INDUSTRIES The IGS-500Ts IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data. FEATURES PHYSICAL PORT * 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function LAYER 2 FEATURES * Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard * Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) * High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth * Backplane (switching fabric): 10Gbps * Integrated address look-up engine, supporting 4K absolute MAC addresses * 9K jumbo packet size * Automatic address learning and address aging * CSMA/CD Protocol INDUSTRIAL CASE AND INSTALLATION * IP30 metal case * DIN rail and wall-mount design * 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support * Supports 6000 VDC Ethernet ESD protection * -40 to 75 degrees C operating temperature * Free fall, shock-proof and vibration-proof for industries Specifications Copper Ports 5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation Connector Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Alarm Provides one relay output for power failure Alarm relay current carry ability: 1A@DC 24V LED 3 x LED for system and power: GREEN: DC Power 1 GREEN: DC Power 2 RED: Power Fault 2 x LED for each copper port GREEN: 1000Mbps LNK/ACT ORANGE:10/100Mbps LNK/ACT ESD Protection 6KV EFT Protection 6KV Power Requirements 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support Power Consumption / Dissipation 3.6 watts/12.35BTU Installation DIN-rail kit and wall-mount ear Enclosure IP30 metal case Dimensions (W x D x H) 70 x 104 x 30 mm Weight 252g Switch Specifications Switch Processing Scheme Store-and-Forward Address Table 4K entries Buffer Memory 1M bits on-chip buffer memory Flow Control Back pressure for half duplex IEEE 802.3x pause frame for full duplex Switch Fabric 10Gbps Throughput (packet per second) 7.4Mpps@64bytes Jumbo Frame 9K Network Cables 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) Standards Conformance Standards Compliance IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service Regulatory Compliance FCC Part 15 Class A, CE Stability Testing IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) Environment Temperature Operating: -40~75 degrees C Storage: -40~75 degrees C Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)
