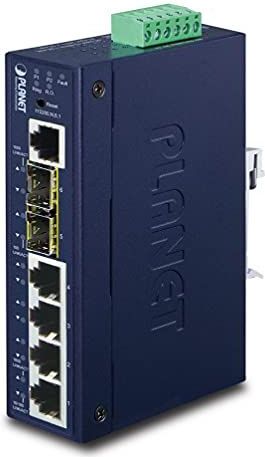

Planet - IGS-5225-4T2S - Netwerkschakelaar - Blauw - IP30 - 6 Havens

PHYSICAL PORT * 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports * 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection * One RJ45 console interface for basic management and setup INDUSTRIAL CASE AND INSTALLATION * IP30 metal case * DIN rail and wall-mount design * 12~48V DC, redundant power with polarity reverse protect function * 24V AC power input acceptable * Supports 5000V DC Ethernet ESD protection * -40 to 75 degrees C operating temperature LAYER 2 FEATURES * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) * High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth * Storm Control support * - Broadcast/Multicast/Unicast * Supports VLAN * - IEEE 802.1Q tagged VLAN * - Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) * - Private VLAN Edge (PVE) * - Protocol-based VLAN- MAC-based VLAN- Voice VLAN * Supports Spanning Tree Protocol * - IEEE 802.1D Spanning Tree Protocol (STP) * - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) * - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN * - BPDU Guard * Supports Link Aggregation * - 802.3ad Link Aggregation Control Protocol (LACP) * - Cisco ether-channel (static trunk) * - Maximum 4 trunk groups with 4 ports per trunk group * - Up to 8Gbps bandwidth (duplex mode) * - Provides port mirror (1-to-1) * Port mirroring to monitor the incoming or outgoing traffic on a particular port * Loop protection to avoid broadcast loopsv * Supports ERPS (Ethernet Ring Protection Switching) LAYER 3 IP ROUTING FEATURES * Supports maximum 32 static routes and route summarization QUALITY OF SERVICE * Ingress Shaper and Egress Rate Limit per port bandwidth control * 8 priority queues on all switch ports * Traffic classification * - IEEE 802.1p CoS * - IP TOS/DSCP/IP precedence * - IP TCP/UDP port number * - Typical network application * Strict priority and Weighted Round Robin (WRR) CoS policies * Supports QoS and In/Out bandwidth control on each port * Traffic-policing policies on the switch port * DSCP remarking MULTICAST * Supports IGMP snooping v1, v2 and v3 * Supports MLD snooping v1 and v2 * Querier mode support * IGMP snooping port filtering * MLD snooping port filtering * MVR (Multicast VLAN Registration) SECURITY * IEEE 802.1X Port-based/MAC-based network access authentication * Built-in RADIUS client to cooperate with the RADIUS servers * TACACS+ login users access authentication * RADIUS/TACACS+ users access authentication * IP-based Access Control List (ACL) * MAC-based Access Control List * Source MAC/IP address binding * DHCP snooping to filter distrusted DHCP messages * Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding * IP Source Guard prevents IP spoofing attacks * IP address access management to prevent unauthorized intruder MANAGEMENT * Switch Management Interfaces * - Console/Telnet Command Line Interface * - Web switch management * - SNMP v1 and v2c switch management * - SSH/SSL and SNMP v3 secure access * Four RMON groups (history, statistics, alarms, and events) * IPv6 IP address/NTP/DNS management * Built-in Trivial File Transfer Protocol (TFTP) client * BOOTP and DHCP for IP address assignment * Firmware upload/download via HTTP/TFTP * DHCP Relay * DHCP Option 82 * User Privilege levels control * Network Time Protocol (NTP) * Link Layer Discovery Protocol (LLDP) * SFP-DDM (Digital Diagnostic Monitor) * Cable diagnostic technology provides the mechanism to detect and report potential cabling issues * Reset button for system reboot or reset to factory default * PLANET Smart Discovery Utility for deployment management Hardware Specifications Copper Ports 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports SFP/mini-GBIC Slots 2 1000BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6) Compatible with 100BASE-FX SFP Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 12Gbps/non-blocking Throughput (packet per second) 8.9Mpps@ 64 bytes packet Address Table 8K entries, automatic source address learning and aging Shared Data Buffer 4Mbits Flow Control IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex Jumbo Frame 9Kbytes Reset Button < 5 sec: System reboot > 5 sec: Factory default ESD Protection 5KV DC Enclosure IP30 metal case Installation DIN rail kit and wall-mount kit Connector Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC LED Indicator SYSTEM: Power 1 (GREEN) Power 2 (GREEN) Fault Alarm ( RED ) Ring (GREEN) Ring Owner (GREEN) PER 10/100/1000T RJ45 PORTS: 10/100Mbps LNK/ACT (ORANGE) 1000 LNK/ACT (GREEN) PER SFP INTERFACE: 100 LNK/ACT (ORANGE) 1000 LNK/ACT (GREEN) Dimensions (W x D x H) 32 x 87x 135 mm Weight 456g Power Requirements Dual 12~48V DC 24V AC Power Consumption Max. 6.3 watts/21.6 BTU (Power on without any connection) Max. 8.5 watts/29.2 BTU (Full loading) Layer 2 Function Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c Secure Management Interfaces SSH, SSL, SNMP v3 Port Configuration Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status Port Mirroring TX/RX/both 1 to 1 monitor VLAN 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs Link Aggregation IEEE 802.3ad LACP/static trunk Supports 4 trunk groups with 4 ports per trunk group QoS Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet IGMP Snooping IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support Access Control List IP-based ACL/MAC-based ACL Up to 123 entries Bandwidth Control Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps SNMP MIBs RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Layer 3 Function IP Interfaces Max. 8 VLAN interfaces Routing Table Max. 32 routing entries Routing Protocols IPv4 software static routing IPv6 software static routing Standards Conformance Regulatory Compliance FCC Part 15 Class A, CE Stability Testing IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 Environment Operating Temperature -40 ~ 75 degrees C Storage Temperature -40 ~ 85 degrees C Humidity 5 ~ 95% (non-condensing)
