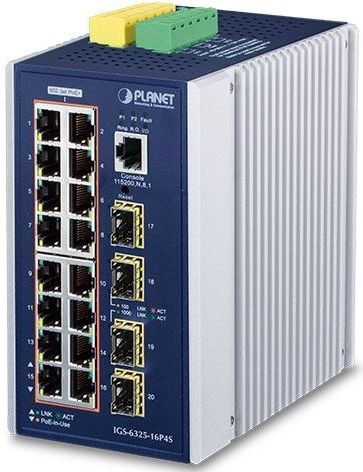

Planet - IGS-6325-16P4S - Netwerkschakelaar - Zwart - 16-poorts 10/100/1000T + 4 SFP POE

MODEL: PLANET IGS-6325-16P4S L3 Industrial 16-Port 10/100/1000T 802.3at PoE + 4-Port 1G/2.5G SFP Managed Ethernet Switch FEATURES PHYSICAL PORT * 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function * 4 100/1000/2500BASE-X MINI-GBIC/SFP slots for SFP type auto detection * One RJ45 console interface for basic management and setup POWER OVER ETHERNET * Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE * Up to 16 IEEE 802.3af/802.3at devices powered * Supports PoE power up to 36 watts for each PoE port * Auto detects powered device (PD) * Circuit protection prevents power interference between ports * Remote power feeding up to 100m * PoE management features * Total PoE power budget control * Per port PoE function enable/disable * PoE admin-mode control * PoE port power feeding priority * Per PoE port power limit * PD classification detection * Intelligent PoE features * Temperature threshold control * PoE usage threshold control * PD alive check * PoE schedule INDUSTRIAL PROTOCOL * Modbus TCP for real-time monitoring in the SCADA system * IEEE 1588v2 PTP (Precision Time Protocol) INDUSTRIAL CASE AND INSTALLATION * IP30 aluminum case * DIN-rail or wall-mount design * 48~56V DC, redundant power with reverse polarity protection * Supports 6KV DC Ethernet ESD protection * -40 to 75 degrees C operating temperature DIGITAL INPUT AND DIGITAL OUTPUT * 2 digital input (DI) * 2 digital output (DO) * Integrate sensors into auto alarm system * Transfer alarm to IP network via email and SNMP trap LAYER 2 FEATURES * Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) * High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth * Storm Control support * Broadcast/Multicast/Unicast * Supports VLAN * IEEE 802.1Q tagged VLAN * Up to 4K VLANs groups, out of 4094 VLAN IDs * Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) * Private VLAN Edge (PVE) * Protocol-based VLAN * MAC-based VLAN * Voice VLAN * GVRP (GARP VLAN Registration Protocol) * Supports SPANNING TREE PROTOCOL * IEEE 802.1D Spanning Tree Protocol (STP) * IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) * IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN * BPDU Guard * Supports LINK AGGREGATION * 802.3ad Link Aggregation Control Protocol (LACP) * Cisco ether-channel (static trunk) * Maximum 10 trunk groups with 4 ports per trunk group * Up to 8Gbps bandwidth (duplex mode) * Provides port mirror (many-to-1) * Port mirroring to monitor the incoming or outgoing traffic on a particular port * Loop protection to avoid broadcast loops * Supports ERPS (Ethernet Ring Protection Switching) * Compatible with Cisco UNI-DIRECTIONAL LINK DETECTION(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices * Link Layer Discovery Protocol (LLDP) LAYER 3 IP ROUTING FEATURES * Supports maximum 128 static routes and route summarization * IPv4 dynamic routing protocol supports OSPFv2 * IPv4/IPv6 hardware static routing * Routing interface provides per VLAN routing mode QUALITY OF SERVICE * Ingress Shaper and Egress Rate Limit per port bandwidth control * 8 priority queues on all switch ports * Traffic classification * IEEE 802.1p CoS * IP TOS/DSCP/IP precedence * IP TCP/UDP port number * Typical network application * Strict priority and Weighted Round Robin (WRR) CoS policies * Supports QoS and In/Out bandwidth control on each port * Traffic-policing on the switch port * DSCP remarking MULTICAST * Supports IPv4 IGMP snooping v1, v2 and v3 * Supports IPv6 MLD snooping v1 and v2 * Querier mode support * IPv4 IGMP snooping port filtering * IPv6 MLD snooping port filtering * MVR (Multicast VLAN Registration) SECURITY * Authentication * IEEE 802.1x port-based / MAC-based network access authentication * Built-in RADIUS client to co-operate with the RADIUS servers * TACACS+ login users access authentication * RADIUS / TACACS+ users access authentication * Access Control List * IP-based Access Control List (ACL) * MAC-based Access Control List * Source MAC / IP address binding * DHCP SNOOPING to filter un-trusted DHCP messages * DYNAMIC ARP INSPECTION discards ARP packets with invalid MAC address to IP address binding * IP SOURCE GUARD prevents IP spoofing attacks * IP address access management to prevent unauthorized intruder MANAGEMENT * IPv4 and IPv6 dual stack management * Switch Management Interfaces * Console/Telnet Command Line Interface * Web switch management * SNMP v1 and v2c switch management * SSH, TLS, SSL and SNMP v3 secure access * SNMP Management * Four RMON groups (history, statistics, alarms, and events) * SNMP trap for interface Link Up and Link Down notification * IPV6 IP address/NTP/DNS management * Built-in Trivial File Transfer Protocol (TFTP) client * BOOTP and DHCP for IP address assignment * System Maintenance * Firmware upload/download via HTTP/TFTP * Reset button for system reboot or reset to factory default * Dual Images * DHCP Relay and DHCP Option 82 * DHCP Server * User Privilege levels control * Network Time Protocol (NTP) * SFP-DDM (Digital Diagnostic Monitor) * Network Diagnositc * ICMPv6/ICMPv4 Remote Ping * Cable diagnostic technology provides the mechanism to detect and report potential cabling issues * PLANET NMS System and Smart Discovery Utility for deployment management * SMTP/Syslog remote alarm * System Log SPECIFICATIONS HARDWARE SPECIFICATIONS * Copper Ports: 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports * SFP/mini-GBIC Slots: * 4 1000BASE-SX/LX/BX SFP interfaces (Port-17 to Port-20) * Compatible with 100BASE-FX and 2500BASE-X SFP * PoE Injector Port: 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16 * Console: 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) * Reset Button: * < 5 sec: System reboot * > 5 sec: Factory default * ESD Protection: 6KV DC * Enclosure: IP30 aluminum case * Installation: DIN-rail kit and wall-mount kit * Connector: * Removable 6-pin terminal block for power input * Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 * Removable 6-pin terminal block for DI/DO interface * Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND * Alarm: One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC * 2 digital input (DI): * Level 0: -24V~2.1V (±0.1V) * Level 1: 2.1V~24V (±0.1V) * Input load to 24V DC, 10mA max. * 2 digital output (DO): Open collector to 24V DC, 100mA max. * LED Indicator: * System: * Power 1 (Green) * Power 2 (Green) * Fault Alarm (Red) * Ring (Green) * Ring Owner (Green) * DIDO (Red) * Per 10/100/1000T RJ45 PoE+ Ports: * PoE-in-Use (Amber) * LNK/ACT (Green) * Per SFP Interface: * 100 LNK/ACT (Amber) * 1G/2.5G LNK/ACT (Green) * Dimensions (W x D x H): 84 x 107 x 152 mm * Weight: 1550g * Power Requirements: Dual 48~56V DC (>51V DC for PoE+ output recommended) * Power Consumption: * Max. 15.68 watts/53.46BTU (Power on without any connection) * Max. 344 watts/1173.04BTU (Full loading with PoE function) SWITCHING SPECIFICATIONS * Switch Fabric: 52Gbps/non-blocking * Switch Architecture: Store-and-Forward * Throughput (packet per second): 38.6Mpps@ 64 bytes packet * Address Table: 32K entries, automatic source address learning and aging * Shared Data Buffer: 32Mbits * Flow Control: * IEEE 802.3x pause frame for full duplex * Back pressure for half duplex * Jumbo Frame: 10K bytes POWER OVER ETHERNET * PoE Standard: IEEE 802.3at Power over Ethernet Plus/PSE * PoE Power Supply Type: End-span * PoE Power Output: * IEEE 802.3af Standard * Per port 48V~51V DC (depending on the power supply), max. 15.4 watts * IEEE 802.3at Standard * Per port 51V~56V DC (depending on the power supply), max. 36 watts * Power Pin Assignment: 1/2(+), 3/6(-) * PoE Power Budget: * 48V Power input * 240W maximum (depending on power input) * 52~56V Power input * Single power input: 240W maximum (depending on power input) * Dual power input: 320W maximum (depending on power input) ?Dual power input must be the same as DC voltage, like dual 56V * Max. Number of Class 2 PDs: 16 * Max. Number of Class 3 PDs: 16 * Max. Number of Class 4 PDs: 10 LAYER 2 FUNCTION * Port Configuration: * Port disable/enable * Auto-negotiation 10/100/1000Mbps full and half duplex mode selection * Flow control disable/enable * Power saving mode control * Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status * Port Mirroring: * TX / RX / Both * Many-to-1 monitor * VLAN: * IEEE 802.1Q tag-based VLAN, up to 255 VLAN groups * IEEE 802.1ad Q-in-Q tunneling * Private VLAN Edge (PVE) * MAC-based VLAN * Protocol-based VLAN * Voice VLAN * MVR (Multicast VLAN Registration) * GVRP (GARP VLAN Registration Protocol) * Up to 4K VLAN groups, out of 4094 VLAN IDs * Link Aggregation: * IEEE 802.3ad LACP/static trunk * Supports 10 trunk groups with 4 ports per trunk group * Spanning Tree Protocol: * IEEE 802.1D Spanning Tree Protocol * IEEE 802.1w Rapid Spanning Tree Protocol * IEEE 802.1s Multiple Spanning Tree Protocol * QoS: * Traffic classification based, strict priority and WRR * 8-level priority for switching * Port number * 802.1p priority * 802.1Q VLAN tag * DSCP/TOS field in IP packet * IGMP Snooping: * IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups * IPv4 IGMP querier mode support * MLD Snooping: * IPv6 MLD (v1/v2) snooping, up to 255 multicast groups * IPv6 MLD querier mode support * Access Control List: * IP-based ACL/MAC-based ACL * Up to 123 entries * Bandwidth Control: * Per port bandwidth control * Ingress: 500Kb~1000Mbps * Egress: 500Kb~1000Mbps LAYER 3 FUNCTION * IP Interfaces: Max. 128 VLAN interfaces * Routing Table: Max. 128 routing entries * Routing Protocols: * IPv4 hardware static routing * IPv6 hardware static routing * IPv4 OSPFv2 dynamic routing MANAGEMENT * Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c * Secure Management Interfaces: SSH, TLS, SSL, SNMP v3 * SNMP MIBs: * RFC 1213 MIB-II * IF-MIB * RFC 1493 Bridge MIB * RFC 1643 Ethernet MIB * RFC 2863 Interface MIB * RFC 2665 Ether-Like MIB * RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) * RFC 2737 Entity MIB * RFC 2618 RADIUS Client MIB * RFC 2933 IGMP-STD-MIB * RFC 3411 SNMP-Frameworks-MIB * IEEE 802.1X PAE * LLDP * MAU-MIB STANDARDS CONFORMANCE * Regulatory Compliance: FCC Part 15 Class A, CE * Stability Testing: * IEC60068-2-32 (free fall) * IEC60068-2-27 (shock) * IEC60068-2-6 (vibration) * Standards Compliance: * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX/100BASE-FX * IEEE 802.3z Gigabit SX/LX * IEEE 802.3ab Gigabit 1000T * IEEE 802.3x flow control and back pressure * IEEE 802.3ad port trunk with LACP * IEEE 802.1D Spanning Tree Protocol * IEEE 802.1w Rapid Spanning Tree Protocol * IEEE 802.1s Multiple Spanning Tree Protocol * IEEE 802.1p Class of Service * IEEE 802.1Q VLAN tagging * IEEE 802.1ad Q-in-Q VLAN stacking * IEEE 802.1X Port Authentication Network Control * IEEE 802.1ab LLDP * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus * IEEE 802.3ah OAM * IEEE 802.1ag Connectivity Fault Management(CFM) * IEEE 1588 PTPv2 * RFC 768 UDP * RFC 793 TFTP * RFC 791 IP * RFC 792 ICMP * RFC 2068 HTTP * RFC 1112 IGMP v1 * RFC 2236 IGMP v2 * RFC 3376 IGMP version 3 * RFC 2710 MLD version 1 * RFC 3810 MLD version 2 * ITU G.8032 ERPS Ring * ITU-T G.8032 ERPS Ring * ITU-T Y.1731 Performance Monitoring ENVIRONMENT * Operating Temperature: -40 ~ 75 degrees C * Storage Temperature: -40 ~ 85 degrees C * Humidity: 5 ~ 95% (non-condensing)
