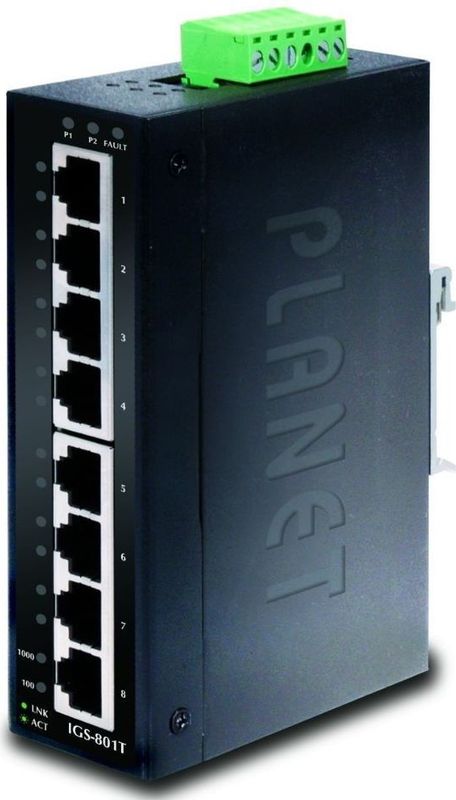

Planet - IGS-801T - Industriële Switch - 8 Poorten - Metalen Behuizing - IP-30

IGS801T PLANET IP30 8-PORT INDUSTRIAL GIGABIT SWITCH 8-PORT 10/100/1000MBPS INDUSTRIAL GIGABIT ETHERNET SWITCH W/ WIDE OPERATING TEMPERATURE New slim type with more practicability and convenience After entering the Industrial Ethernet market with popular ISW / IFT series Fast Ethernet Switch / Converter products, PLANET now releases the advanced industrial hardened Gigabit Ethernet Switch series with new slim type, IP-30 metal case. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T, one of the new series model, equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments. Stable performance under difficult environments The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degree C, the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. Robust Switch performance The IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 8K MAC Address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the IGS-801T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room. All of the RJ-45 copper interfaces in the IGS-801T support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. PHYSICAL PORT * 8-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function LAYER 2 FEATURES * Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard * Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode * High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth * Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex) * Backplane (Switching Fabric): 16Gbps * Integrated address look-up engine, support 8K absolute MAC addresses * 176 kilobytes on-chip frame buffer * 9K Jumbo packet size support * Automatic address learning and address aging * CSMA/CD Protocol INDUSTRIAL CASE / INSTALLATION * IP-30 Metal case / Protection * DIN Rail and Wall Mount Design * 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power * Supports EFT protection 6000 VDC for power line * Supports 6000 VDC Ethernet ESD protection * -40 to 75 Degree C operation temperature MODEL IGS-801T 10/100/1000Base-T Ports 8 Dimension (W x D x H) 135 x 87 x 32 mm Weight 473g Power Requirement 12~48 VDC, Redundant power with polarity reverse protection function Power Consumption / Dissipation 13.2 Watts / 45BTU Installation DIN rail kit and wall mount ear Alarm Provides one relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V Switch Processing Scheme Store-and-Forward Address Table 8K entries Buffer 176 kilobytes Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex Switch fabric 16Gbps Throughput (packet per second) 11.9Mpps Jumbo Frame 9K Network cables 10/100/1000Base-T: Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.) EIA/TIA-568 100-ohm STP (100meters, max.) Standards Compliance IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control Temperature Operating: -40~75 Degree C Storage: -40~75 Degree C Humidity Operating: 5~90%, Storage: 5~90% (Non-condensing) Regulation Compliance FCC Part 15 Class A, CE Safety UL, cUL Stability testing IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)
