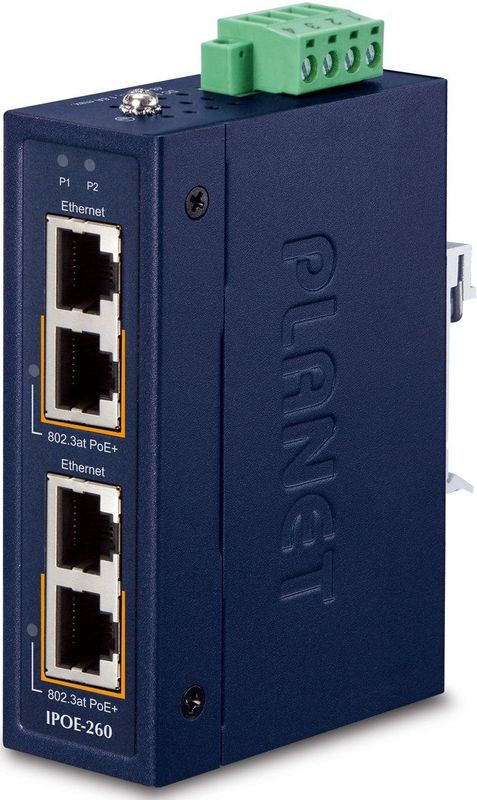

PLANET - IPOE-260 - PoE+ Injector - 2-Port - Gigabit - 48-56V DC

MODEL: PLANET IPOE-260 FEATURES INTERFACE * 4 10/100/1000BASE-T RJ45 interfaces * 2-port Data + Power output * 2-port Data input * 1 terminal block for master and slave power input with reverse polarity protection * Power Range: 48 ~ 56V DC redundant power (IPOE-260) * LED indicators for power LED and PoE-in-use POE * Gigabit Power over Ethernet Plus mid-span PSE * IEEE 802.3at PoE+ compliant * IEEE 802.3at splitter devices compatible * Supports PoE Power up to 36 watts for PoE port * Provides DC 54V power over RJ45 Ethernet cable to device * Auto-detection of PoE IEEE 802.3af/at devices * Remote power feeding up to 100m INDUSTRIAL CASE AND INSTALLATION * IP30 slim metal case * DIN-rail, wall-mount or side wall-mount design * Supports 6KV DC Ethernet ESD protection * -40 to 75 degrees C operating temperature SPECIFICATIONS HARDWARE SPECIFICATIONS * Copper Ports: 2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports: * Data input port 1 and PoE output port 1 * Data input port 2 and PoE output port 2 * Connector: Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 * LED Indicator: * System: * Power 1 (Green), * Power 2 (Green), * PoE Port: * 802.3at PoE+ x 1 (Green + Orange) * Network Cable: * Twisted-pair cable up to 100 meters (328ft) * 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 * 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 * 1000BASE-T: 4-pair UTP Cat. 5e, 6 * Data Rate: 10/100/1000Mbps * Power Requirements: 48~56V DC, redundant power with reverse polarity protection function. * Power Consumption (Ethernet Full Loading): * Max. 2 watts/6.8 BTU (Power on without any connection) * Max. 80 watts/272.9 BTU (Full loading with PoE function) * Dimensions (W x D x H): 30 x 70 x 105 mm * Weight: 280g * Enclosure: IP30 metal case * Installation: DIN-rail, wall-mount or side wall-mount design * ESD Protection: 6KV * EFT Protection: 6KV POWER OVER ETHERNET * PoE Standard: IEEE 802.3at Power over Ethernet Plus / mid-span PSE * PoE Power Output: * 48V DC input: Per PoE port max. 32 watts * 56V DC input: Per PoE port max. 36 watts * PoE Power Supply Type: Mid-span * Power Pin Assignment: 4/5 (+), 7/8 (-) * PoE Power Budget (max.): 72 watts@48~56V DC input * Number of devices that can be powered: 2 STANDARDS CONFORMANCE * Regulatory Compliance: FCC Part 15 Class A, CE * Stability Testing: * IEC 60068-2-32 (free fall) * IEC 60068-2-27 (shock) * IEC 60068-2-6 (vibration) * Standards Compliance: * IEEE 802.3 Ethernet * IEEE 802.3u Fast Ethernet * IEEE 802.3ab Gigabit Ethernet * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus ENVIRONMENT * Temperature * Operating: -40~75 degrees C * Storage: -40~75 degrees C * Humidity: * Operating: 5~90% (non-condensing) * Storage: 5~90% (non-condensing)
