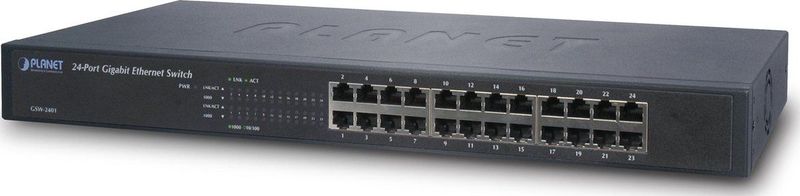

PLANET - TGSW-2401 - Gigabit Ethernet Switch - 24 Poorten - 10/100/1000 Mbps

5521 GSW2401 PLANET 19" 24-PORT 10/100/1000MBPS GIGABIT ETHERNET SWITCH 10/100/1000 Mbps Gigabit Ethernet Switch 24 port The PLANET TGSW-2401 are Gigabit Ethernet switches with 24 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. The switches can also automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its /24 ports. The Gigabit port with jumbo frame feature supported, can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers. The TGSW-2401 also supports store-and-forward forwarding scheme to ensure low latency and high data integrity, eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601/GSW-2401 has 8K MAC Address table and provides 340 / 500K bytes buffer memory for enables filtering and forwarding at full wire speed. All RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Support is standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows the T GSW-2401 supported routers and servers to directly connect to this switch for fast and reliable data transfer. * Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T. * 24-Port 10/100/1000Mbps Gigabit Ethernet ports * Features Store-and-Forward mode with wire-speed filtering and forwarding rates * Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation * IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation * Integrated address look-up engine, support 8K absolute MAC addresses * 340/500K bytes on-chip frame buffer * 9K Jumbo packet supports * Automatic address learning and address aging * Supports Auto MDI/MDI-X function * Supports CSMA/CD protocol * 100~240VAC, 50~60Hz universal Power input * FCC, CE class A compliant APPLICATION BACKBONE SWITCH With up to 32/48 Gigabits per second of non-blocking switch fabric, the TGSW-2401 can easily provide the high bandwidth required both now and future. SERVER FARM SWITCH Provide 24 Gigabit Ethernet ports, the GSW-2401 is ideal to use as a server farm switch connecting to your servers and powerful desktops. SPECIFICATION HARDWARE SPECIFICATION MODEL TGSW-2401v2 PORTS 24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports SWITCH PROCESSING SCHEME Store-and-forward THROUGHPUT (PACKET PER SECOND) GSW-2401: 35.7Mpps SWITCH FABRIC GSW-2401: 48Gbps ADDRESS TABLE 8K entries SHARE DATA BUFFER Share data Buffer JUMBO PACKET SIZE 9K FLOW CONTROL Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex DIMENSIONS 440 x 120 x 44 mm (1U height) WEIGHT GSW-2401: 1.64kg POWER REQUIREMENT 100~240 VAC, 50-60 Hz POWER CONSUMPTION / DISSIPATION 30 watts / 102BTU TEMPERATURE Operating: 0~50 degree C Storage -40~70 degree C HUMIDITY OPERATING 5% to 90%, Storage: 5% to 90% (Non-condensing) STANDARDS CONFORMANCE STANDARDS COMPLIANCE IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (full-duplex flow control) FCC Part 15 Class A, CE
