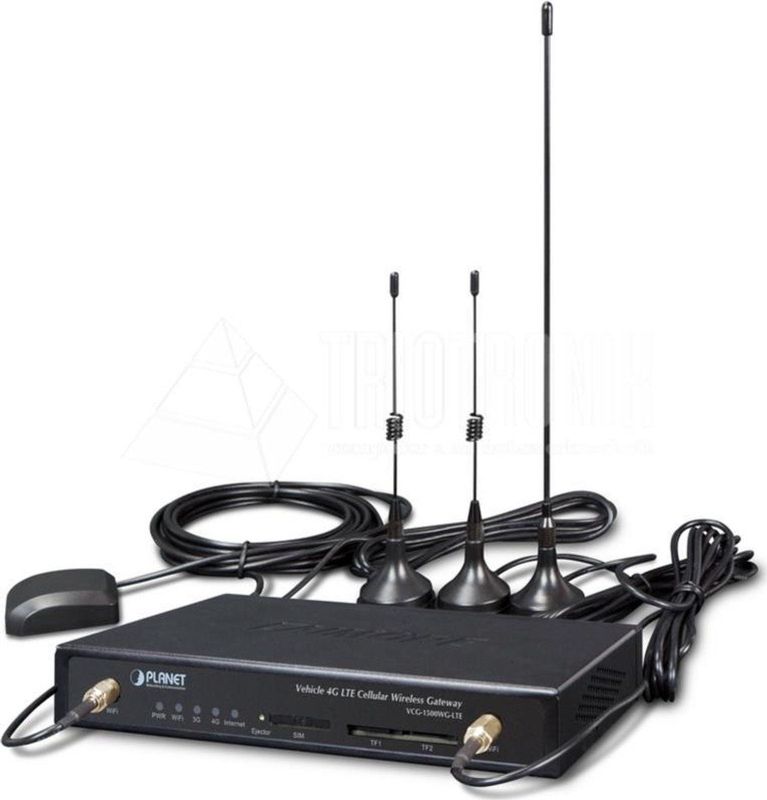

Planet - VCG-1500WG-LTE - 4G LTE Cellular Gateway - 5-Port - Zwart

MODEL: PLANET VCG-1500WG-LTE-EU Vehicle 4G LTE Cellular Wireless Gateway with 5-Port 10/100TX (1 SIM Card Slot, 802.11n, GPS, -25~65 degrees C, LTE Band B1/B3/B5/B7/B8/B20) 4G LTE CELLULAR COMMUNICATION SOLUTION PLANET VCG-1500WG-LTE is a compact and advanced 4G/LTE embedded router running on multiple LTE bands including FDD, TDD, WCDMA, Edge and GSM, delivering 4G/LTE access speeds with peak download rate up to 100Mbps. Featuring superior failover/fallback functionality, the router can automaticallyfall back to the 3G network when it gets a poor and unstable 4G LTE environment. Integrating with an 802.11n (2.4GHz) access point, users can access to the Internet easily. Supporting Wifidog, the VCG-1500WG-LTE can be easily managed by a centralized device management system (CMS) for configuration, monitoring and advertising. It is an ideal solution for public bus, taxi, long tourist bus, bullet train Wi-Fi coverage. FEATURES PHYSICAL PORT * 4 10/100BASE-TX RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X * 1 10/100BASE-TX RJ45 WAN port, auto-negotiation, auto MDI/MDI-X * 1 4G LTE 2.3 dBi antenna * 2 2.4G WiFi 2dBi antennas * 1 GPS antenna * 1 SIM card slot * 1 console port * 2 TF card slots to save files for Wi-Fi advertising CELLULAR INTERFACE * Supports multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4 * Built-in SIM and broadband backup for network redundancy * One detachable antenna for 4G LTE connection * LED indicators for connection status (3G/4G) WI-FI INTERFACES * Complies with IEEE 802.11b/g/n 2.4GHz * Two detachable antennas for wireless connection * 64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption), * LED indicators for status CASE AND INSTALLATION * IP30 metal case * Mounting brackets for vehicles * Power requirement: 6~32V DC * Supports 15KV DC Ethernet ESD protection * -25 to 65 degrees C operating temperature ADVANCED FEATURES * Supports demilitarized zone (DMZ). * Supports VPN client, including GRE, PPTP, IPSec, L2TP * Supports NAT port mapping function, such as SNAT, DNAT * Supports Static Routing to display current routing information of the gateway * Supports QoS for bandwidth management * Supports Dynamic DNS and PLANET DDNS * Supports WAN connection types: DHCP client, static IP and PPPoE client * Secures network connection - IP filter - URL filter - MAC filter MANAGEMENT * Gateway management interfaces - Console/Telnet Command Line interface - Web management * Gateway Maintenance - Firmware upload via HTTP, TFTP - Restore or Reset button for reset to factory default - Dual images * SNTP (Simple Network Time Protocol) * System log * System tool, such as ping and trace * Configuration backup and restore * Supports CMS (Central Management System) and Wifidog for remote management and Wi-Fi advertising SPECIFICATIONS HARDWARE * Copper Ports: * 4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports * 1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port * Console: 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) * SIM Interface: 1 x SIM card slot with mini SIM card tray * Cellular Antenna: 1 x 2dBi external antenna with SMA connector for LTE * Wi-Fi Antenna: 2 x 2dBi external antennas with SMA connectors for 2.4GHz * GPS Antenna: 1 x 28dB gain external antenna with SMA connectors for GPS -3m * USB Interface: 1 x USB 2.0 for external storage * TF Card Interface: 2 x TF cards for storing thousands of advertising data, max. capacity up to 128G for each * Connector: Standard 4-pin vehicle power jack for power input * Reset Button: > 5 sec: Factory default * ESD Protection: 15KV DC * Installation: Mounting brackets for vehicles * LED Indicators: * System: * PWR (Red) * Ethernet Interfaces (Port1-4 and WAN Port): * LNK (Green) * ACT (Orange) * LTE SIM and Signal: * 3G/4G (Blue) * Wi-Fi (Blue) * Internet (Blue) * Dimensions (W x D x H): 168 x 104 x 25 mm (not including antenna and connector) * Weight: 537g (not including antenna) * Power Requirements – DC: 6~32V DC, 1.5A * Power Consumption: 3 watts/10.23 BTU MULTI BAND SUPPORTS * EU Model: * - FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800) * - TDD LTE B38/B40/B41 (2600/2300/2500) * - WCDMA B1/B5/B8 (2100/850/900) * - GSM/EDGE B3/B8 (1800/900) * US Model: * - FDD LTE B2/B4/B5/B13/B17/B25 (1900/AWS/850/700) * - WCDMA B1/B2/B4/B5/B8 (2100/1900/AWS/850/900) * - EVDO BC10/BC0/BC1 (1700/800/1900) * - GSM/GPRS/EDGE (850/900/1800/1900) * LTE Data Rate: 20MHz bandwidth: 100Mbps (DL), 50Mbps (UL) WIRELESS SPECIFICATIONS * Standard: IEEE 802.11b/g/n 2.4GHz * Wireless Mode: Access Point * Operating Channels: FCC: 1~11, ETSI: 1~13 * Encryption Security: 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK * Data Rate: Up to 300Mbps * Transmission Distance: * Up to 150 meters * *The estimated transmission distance is based on the theory. * The actual distance will vary in different environments. ADVANCED FUNCTIONS * VPN: GRE, PPTP, IPSec, L2TP * QoS: Bandwidth management * WAN Connection Type: PPPoE, Static, DHCP client * Wifidog: Wi-Fi authentication and advertising * Secure Network: * IP filter * URL filter * MAC filter * Other: * Supports demilitarized zone (DMZ) * Supports NAT port mapping function, UPnP * Supports Dynamic DNS MANAGEMENT * Basic Management Interfaces: Console, Telnet, Web browser STANDARDS CONFORMANCE * Regulatory Compliance: CE, FCC * Standards and Protocols Compliance: * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX * IEEE 802.3x flow control and back pressure * RFC 768 UDP * RFC 791 IP * RFC 792 ICMP * RFC 5321 SMTP * RFC 2068 HTTP * RFC 1939 POP3 * RFC 854 TELNET * RFC 959 FTP ENVIRONMENT * Operating: * Temperature: -25 ~ 65 degrees C * Relative Humidity: 95% (non-condensing) * Storage: * Temperature: -40 ~ 85 degrees C * Relative Humidity: 95% (non-condensing)
