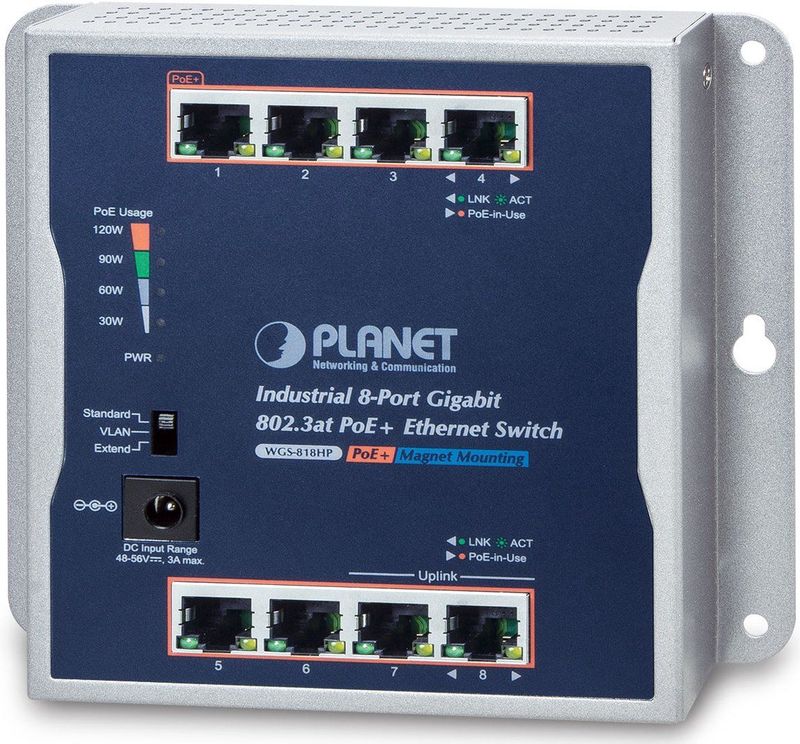

PLANET - WGS-818HP - Managed Switch - 8-Port - Gigabit - PoE+

MODEL: PLANET WGS-818HP INDUSTRIAL 8-PORT 10/100/1000T WALL-MOUNTED GIGABIT POE+ SWITCH FEATURES POWER OVER ETHERNET * Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE * Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE * Up to 8 ports of IEEE 802.3at devices powered * Supports PoE Power up to 30.8 watts for each PoE port * Auto detects powered device (PD) * Circuit protection prevents power interference between ports * Remote power feeding up to 250 meters (in extend mode) LAYER 2 FEATURES * High performance Store and Forward architecture * IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation * 9K jumbo frame supports in 1000Mbps duplex mode * Automatic address learning and address aging INDUSTRIAL CASE AND INSTALLATION * Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting * IP30 metal chassis * Supports -20 to 60 degrees C operating temperature * LED indicators for real-time PoE usage * 48V~56V DC input range SPECIFICATIONS HARDWARE SPECIFICATIONS * Network Connector: 8-Port RJ45 for 10/100/1000BASE-T * PoE Inject Port: 8-Port with 802.3at PoE+ injector function (Port-1 to Port-8) * Switch Architecture: Store and forward * MAC Address Table: 4K MAC address table with auto learning function * Switch Fabric: 16Gbps / non-blocking * Switch Throughput: 11.9Mpps@64Bytes * Jumbo Frame: 9Kbytes * Flow Control: * IEEE 802.3x pause frame for full duplex * Back pressure for half duplex * LED Indicators: * Power LED: * ?Power (Green) * PoE Power Usage LED: * ?30W, 60W, 90W, 120W (Amber) * PoE Port: * ?PoE-in-Use (Amber) * ?LNK/ACT (Green) * ESD Protection: 4KV DC * DIP Switch: * Selectable operation modes: * ? Standard: IEEE 802.3at PoE+ transmission distance of 100m * ? VLAN: Port-based VLAN * ? Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps * Connector: DC power jack with 2.0mm central pole * Power Requirements: 48~56V DC, 3A (max.) * Power Consumption: 137 watts / 467BTU * Enclosure: IP30 metal * Dimensions (W x D x H): 148 x 25 x 134 mm * Weight: 474g * Installation: Fixed wall mounting, magnetic wall mounting and DIN-rail mounting POWER OVER ETHERNET * PoE Standard: IEEE 802.3at Power over Ethernet Plus PSE * PoE Power Supply Type: End-span * PoE Power Output: * IEEE 802.3af Standard * ?- Per port 48V~56V DC (depending on the power supply), max. 15.4 watts * IEEE 802.3at Standard * ?- Per port 50V~56V DC (depending on the power supply), max. 30 watts * Power Pin Assignment: 1/2(+), 3/6(-) * PoE Power Budget: 120 watts (depending on power input) * Max. Number of Class 2 PDs: 8 * Max. Number of Class 3 PDs: 8 * Max. Number of Class 4 PDs: 4 STANDARD CONFORMANCE * Standard Compliance: * IEEE 802.3 Ethernet * IEEE 802.3u Fast Ethernet * IEEE 802.3ab Gigabit Ethernet * IEEE 802.3x Flow Control * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet plus * IEEE 802.3z Energy Efficient Ethernet * Regulatory Compliance: FCC Part 15 Class A, CE * Stability Testing: * IEC 60068-2-32 (Free fall) * IEC 60068-2-27 (Shock) * IEC 60068-2-6 (Vibration) ENVIRONMENT * Operating: * Temperature: -20 ~ 60 degrees C * Relative Humidity: 5 ~ 95% (non-condensing) * Storage: * Temperature: -20 ~ 70 degrees C * Relative Humidity: 5 ~ 95% (non-condensing)
